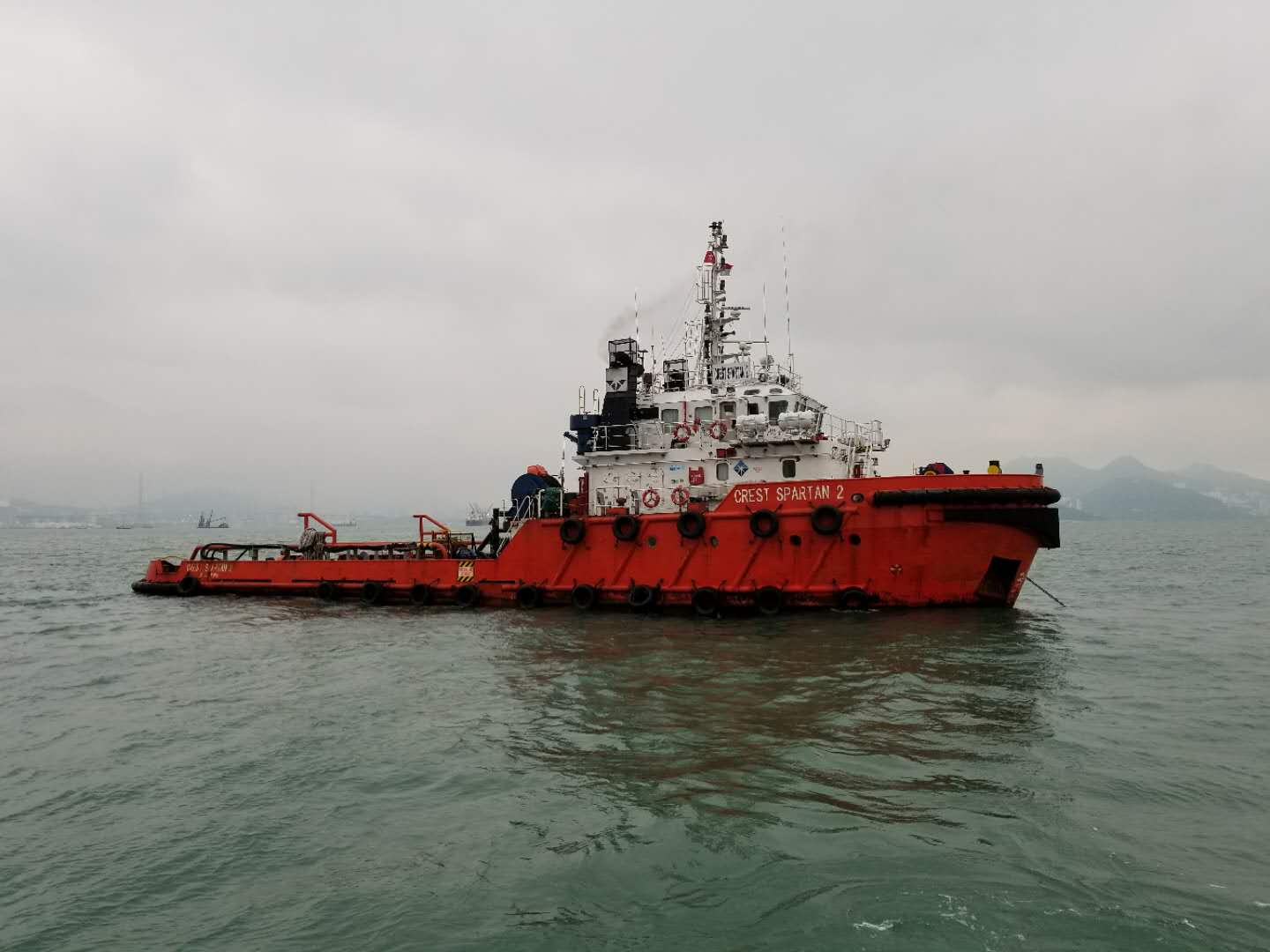

4400BHP Ocean Anchor Handling Tug

TIME:2018-11-26 02:10:16 浏览次数：481次



General				Dimensions			Performance
Name	CREST SPARTAN 2			Length Overall	42.10m		Design Speed	Abt 12.50 knots
Class	BV			Breadth Moulded	11.20m		Type of Fuel	Marine Diesel Oil
Flag	Singapore			Depth Moulded	4.90m		Bollard Pull	Abt 55T(M/E at 100% MCR)
Call Sign	9V8063			Draught Designed	4.00m		Endurance	Abt 8000NM (Service Speed: 11 knots)
Official Number	395250			Maximum Draught	Approx 4.00m
Year Built	2009			Deadweight	TBA
GRT/NRT	595T/178T
Deck area				Discharge Rate			Capacity
Deck Strength		Approx 5T/m2		Fuel Oil		1×50m3/hr@60m head	Fuel Oil	480m3
Clear Deck Area		Approx 132.8m2		Fresh Water		1×60m3/hr@42m head	Fresh Water	70m3
				Ballast Water		1×60m3/hr@42m head	Ballast Water	40m3 (Figuers are Approx.)
Machinery
Main Engines			Cummins QSK60M
Rating			2×2200bhp@1800rpm
Output			3×200kw(415V/3p/50Hz)@1500rpm
